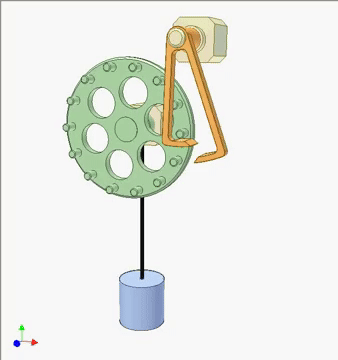

This mechanism uses an orange pivoting arm as an escapement that regulates the slow rotation of a green wheel loaded by a descending blue weight. The wheel carries a ring of evenly spaced rods, and the hooked end of the pivot arm alternately stops and releases these rods to produce a steady stepwise motion.

Components — The system features a green perforated wheel fitted with small radial rods, an orange pivot arm mounted on an upper support block, and a long shaft connecting the wheel to a blue weight that provides the driving torque. The pivot arm has two angled segments and a hooked tip shaped to engage the rods cleanly.

How it works — As gravity pulls the weight downward, the wheel attempts to rotate continuously. The hooked arm intercepts one of the rods, preventing further rotation. When the arm rises and swings away, it frees that rod and immediately positions itself to catch the next one. This alternating catch and release action limits the wheel’s rotation to one increment per swing, pacing the descent of the weight with remarkable regularity.

Applications — Rod based escapements are used in timing devices, display mechanisms, slow feeds, and anywhere a smooth force must be broken into precise increments. Their simple geometry makes them reliable and easy to manufacture.

Why it matters — By providing a dependable mechanical rhythm without gears or electronics, the escapement ensures predictable motion and energy release. Its clean engagement with the rods minimizes wear and delivers long lasting, consistent performance.
