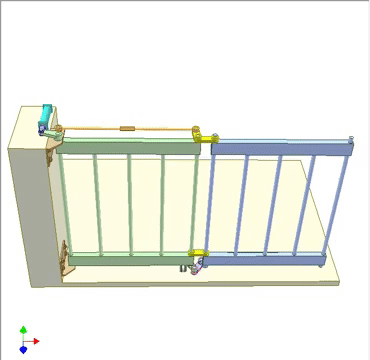

This mechanism combines folding hinges with a sliding guide so that a two-panel gate can open and close without requiring the full arc of a swinging door. The two panels remain linked as they fold and straighten, keeping alignment controlled while reducing the overall clearance needed.

Components — Left fixed post, blue outer panel, green inner panel, yellow hinge connector, sliding carriage, upper and lower guide rails, and small synchronizing linkages.

How it works — When the outer panel is pulled, the sliding carriage at the top draws it sideways while the hinge connector forces the inner panel to fold toward it. Both panels move as a single coordinated pair: the top guide rail governs horizontal travel, while the lower pivot ensures the folding angle stays consistent. Reversing the motion causes the panels to unfold smoothly and lock together into a straight gate.

Applications — Balcony or corridor gates, compact entrances, closet or partition systems, and any opening where swing clearance is limited.

Why it matters — The bi-fold layout dramatically reduces the required operating space while maintaining a sturdy, full-width barrier when closed. Its guided folding motion prevents binding and ensures reliable operation even in narrow or obstructed environments.
